New G2 version of Stockspec ESC for Racing.

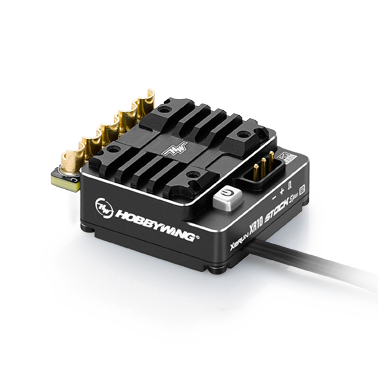

Hobbywing HW30112402 - XERUN XR10 STOCK SPEC G2 ESC
3 select-to-use profiles applicable to 1/10 RC car racing.
Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or OTA Programmer to the ESC.
Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection),reverse polarity protection (the external standard cap-pack will still be damaged if battery reversal occurs).
Data logging for recording the maximum ESC/motor temperature, motor RPM, and others in real time.
Firmware upgrade via Hobbywing multifunction LCD G2/Pro program box or OTA Programmer (item sold separately).
Specs:
Cont./Peak Current: 100A/500A
Motor Type: Sensored / Sensorless Brushless Motors
Applications: Stock Class 1/10 Touring Car & Buggy Racing, 1/10 Drift
Motor Limit: ≥10.5T (2S LiPo)
LiPo/NiMH Cells: 2S LiPo(Only)
BEC Output: 6V/7.4V Adjustable, Continuous Current of 5A (Switch-mode)
Size: 34.8x30x13.8mm
Weight: 63g
Programming Port: PRG/FAN Port
